Incident light microscope with high stand column

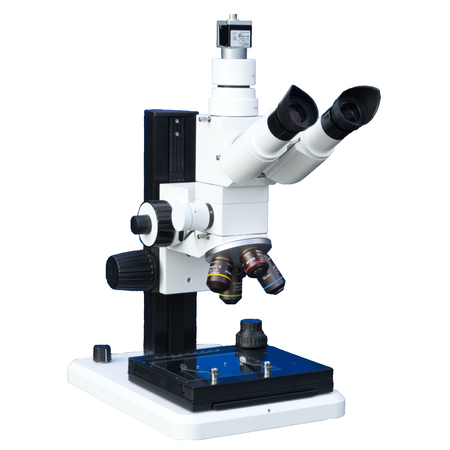

Microscope GSX-400 / GSX-600

  • Reflected light microscope with coaxial illumination
  • Height adjustment on the tripod column and coaxial coarse/fine drive for focusing
  • Excellent image quality
  • XY positioning table
Feature Specification
LED illumination Constant color temperature at every brightness level; 20,000-hour service life
Focus drive Coarse and fine coaxial drive
Focus resolution 2 µm
Focus stroke 25 mm
Maximum specimen height 170 mm (GSX-400) or 370 mm (GSX-600)
Distance from optical axis to tripod column 125 mm
Positioning stage travel 70 × 50 mm with vernier in the X-direction
Objective nosepiece 4-fold
Eyepieces GF-Pw 10x/20, suitable for eyeglass wearers
Camera interface C-mount connector
Tripod base Built-in power supply for illumination, 310 × 220 × 30 mm
Weight Approx. 12.15 kg
  • Object micrometer for calibration
  • Olympus lenses Achromat MPlan N: 5x, 10x, 20x, 50x
  • Olympus lenses Semi Apochromat MPlanFL N 5x, 10x, 20x, 50x
  • USB3 cameras with resolutions of 2.3 MP, 3 MP and 5 MP
