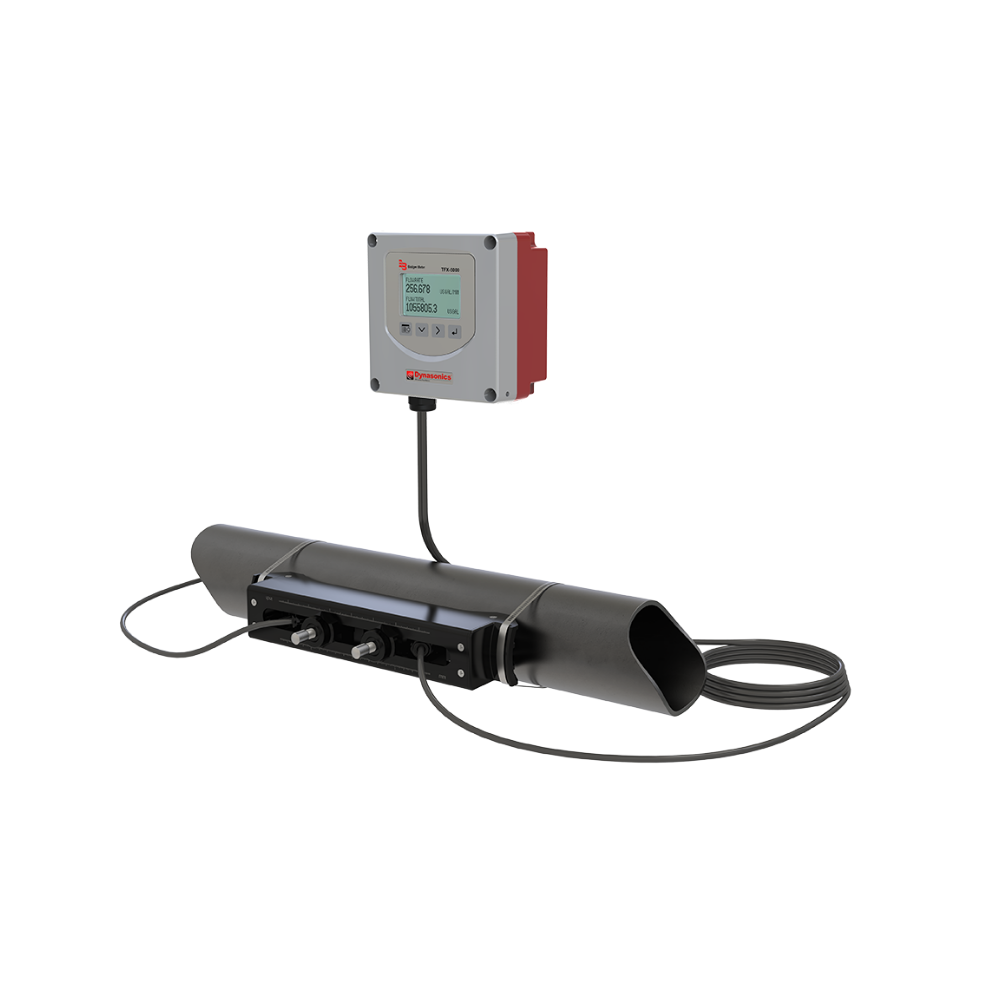

The Dynasonics® TFX-5000 Ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe. This highly capable meter provides advanced features without breaking your budget.
The TFX-5000 transit time ultrasonic flow meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage. TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid.
By clamping onto the outside of pipes, the meters have inherent advantages over other flow meter technologies, including:
• Reduced installation time and cost
• Non-invasive, non-contact measurement
• Continued operation during installation—no need to shut down the process
• No pressure head loss
• No moving parts to maintain or replace
• Large, bi-directional flow measuring range
• Data log up to 8 records
• Modbus® RTU or BACnet® MS/TP (BTL certification) over EIA-485; Modbus TCP/IP; BACnet/IP; EtherNet/IP; AquaCUE®/BEACON® connectivity
• Configuration and troubleshoot over USB or Bluetooth with SoloCUE app
• Reynolds, ultrasonic speed and temperature compensation
• Large, easy-to-read graphical display
• Rugged, aluminum enclosure for a long service life in harsh environments

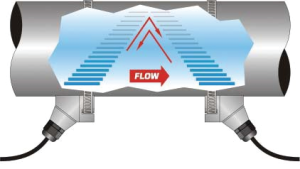

Transit time flow meters measure the time difference between the travel time of an ultrasound wave going with the fluid flow and against the fluid flow. The time difference is used to calculate the velocity of the fluid traveling in a closed-pipe system. The transducers used in transit time measurements operate alternately as transmitters and receivers. Transit time measurements are bi-directional and are most effective for fluids that have low concentrations of suspended solids and are sonically conductive.
An ultrasonic meter equipped with heat flow capabilities measures the rate and quantity of heat delivered or removed from devices such as heat exchangers. By measuring the volumetric flow rate of the heat exchanger liquid, the temperature at the inlet pipe and the temperature at the outlet pipe, the energy usage can be calculated.
| Feature | Specification |
|---|---|
| Liquid Types | Most clean liquids or liquids containing small amounts of suspended solids or gas bubbles. |
| Flow Accuracy (Medium Pipes) | JZ, KZ, NZ, RZ, WZ, HZ: ±0.5% ±0.025 ft/s (0.008 m/s) of reading. |
| Flow Accuracy (Large Pipes) | LZ, YZ: ±0.5% ±0.049 ft/s (0.015 m/s) of reading. |
| Flow Accuracy (Small Pipes) | 1 in. (25 mm) and larger: ±1% ±0.03 ft/s (0.009 m/s) of reading. 3/4 in. (20 mm) and smaller: ±1% of full scale. |
| Repeatability | 0.2% above 1.5 ft/s. |
| Velocity (Medium & Large Pipes) | Up to 40 ft/s, depending on pipe and fluid. |
| Velocity (Small Pipes) | Up to 20 ft/s, depending on pipe and fluid. |
| Straight Run Requirements | 10 pipe diameters upstream and 5 pipe diameters downstream from a single elbow. |
| General Safety Certifications | cCSAus; CE (Low Voltage Directive 2014/35/EU, Pollution Degree 2); UKCA (Low Voltage Statutory Instrument 2016/1101, Pollution Degree 2). |
| Bluetooth Compliance | FCC Part 15 (USA), CAN ICES-003 (Canada), RED 2014/53/EU (Europe). Display and keypad versions are also available without Bluetooth (Option P). |
| U.S./Canada Hazardous Location (Option B) | cCSAus Class I Division 2 Groups A, B, C, D T4. Requires flexible conduit. Not available with UZ, HZ, JZ/KZ (Easy Rail) transducers, Auxiliary Dry Contact card, or AquaCUE/BEACON endpoints. |
| U.S./Canada Hazardous Location (Option R) | Transmitter: cCSAus Ex ec ic nC IIC T4 Gc; Ex tc IIIB T100°C Dc; Class I Zone 2; Zone 22; Class II Division 2 Groups F,G; Class III. Not available with Auxiliary Dry Contact card or AquaCUE/BEACON endpoints. |
| Transducers (Option R) | LZ, NZ, RZ, WZ, YZ: cCSAus Ex ec IIC T6 Gc; Ex tc IIIB T60°C Dc; Class I Zone 2; Zone 22; Class II Division 2 Groups F,G; Class III. Requires flexible conduit. |
| ATEX Hazardous Location | Transmitter: II 3 G D Ex ec ic nC IIC T4 Gc; Ex tc IIIB T100°C Dc; Ambient −25 to 60°C. JZ, KZ, LZ, NZ and RZ transducers: II 3 G D Ex ec IIC T6 Gc; Ex tc IIIB T60°C Dc. |
| UKEX Hazardous Location | Same ratings as ATEX. Not available with UZ, CA–CT or HZ transducers, Auxiliary Dry Contact card, or AquaCUE/BEACON endpoints. |
| IECEx Hazardous Location | Transmitter: Ex ec nC ic IIC T4 Gc; Ex tc IIIC T100°C Dc. JZ, KZ, LZ, NZ and RZ transducers: Ex ec IIC T6 Gc; Ex tc IIIB T60°C Dc. Ambient −25 to 60°C. |
The TFX-5000 meter is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements.
The TFX-5000 meter is available in two versions:
• A flow meter for water delivery, sewage, cooling water,
water-glycol mixtures, alcohols and chemicals
• A heating/cooling energy flow meter used in conjunction with dual clamp-on RTDs for temperature measurement—ideal for hydronic process and HVAC applications
