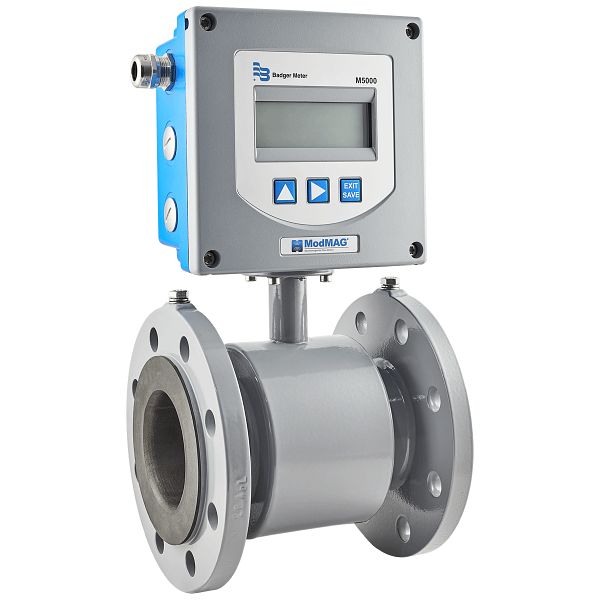

BADGER Amplifier ModMAG® M5000 Battery-powered Electromagnetic meter with MID

  • Sizes from DN 15 to DN 600
  • OIML R49-1 and MID MI-001 approved
  • RS232 Modbus, IrDA, M-Bus®, optional RS485
  • Up to 20 years battery life span
  • LCD display
  • IP 67 / IP 68 protection class
  • Verification Device
  • Accuracy better than ±0,4% v. M.
  • Measuring range of 0,03 to 10 m/s



Ask Question
Category: Product ID: 4569

Description

BADGER Amplifier ModMAG® M5000

Battery-powered Electromagnetic meter with MID



The ModMAG® M5000 is a battery-powered electromagnetic flow meter with a very high accuracy even at very low flows. The excellent repeatability as well as the above-average battery life makes this innovative water meter indispensable for the water market. Typical applications are leak detection in water networks, water consumption measurements and irrigation plants.

The meter is best suited for applications without a power supply where exact consumption or flow rates are required. Of course, the ModMAG® M5000 can also be used with an available power supply. The meter can be powered with main voltage and in case of a main failure, it is powered by an internal battery. Important data are consequently saved.

The ModMAG® M5000 is designed to comply with OIML R49-1 and MID MI-001.

Medium:
Water
max. flow:
from 0.02 up to 170000 l/min
Temperature:
from 0 up to 80 °C
max. pressure:
from 0 up to 100 bar
Branch:
Water & waste water industry



Measuring principle

Electromagnetic flow meters

The operating principle of the electromagnetic flow meter is based on Faraday’s law of magnetic induction: The voltage induced across any conductor, as it moves at right angles through a magnetic field, is proportional to the velocity of that conductor. The voltage induced within the fluid is measured by two diametrically opposed internally mounted electrodes. The induced signal voltage is proportional to the product of the magnetic flux density, the distance between the electrodes and the average flow velocity of the fluid.

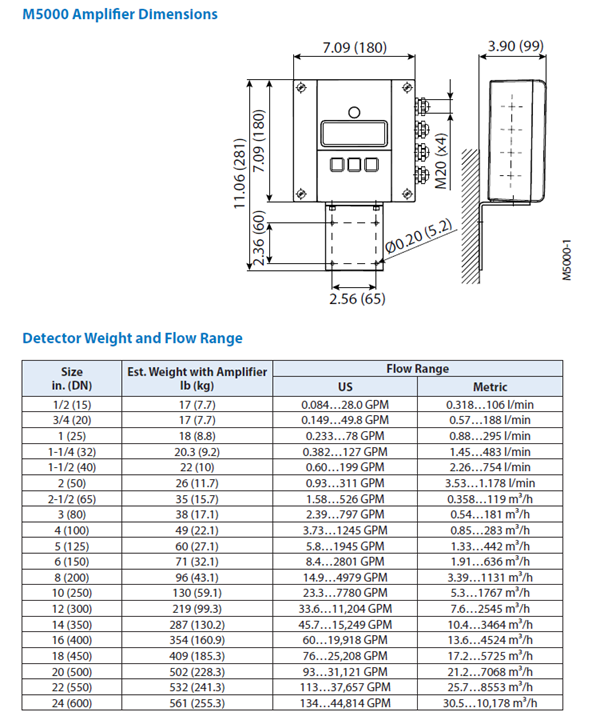

technical data

Size DN 15 – DN 600
Accuracy ±0,4 % of actual flow, ±2 mm/s of actual flow
Repeatability 0,1 %
Flow range 0,03 – 10 m/s
Conductivity Min. 20 μS/cm
Power supply Internal Lithium batteries 3,6 V Optional battery back-up model (100 – 240 VAC or 9 – 36 VDC)
Display LCD, 2 lines
Digital outputs 4 x open collector
Digital inputs Yes
Analog output –
Interface Modbus RTU RS232 (optional RS485), M-Bus, IrDA
Empty pipe detection Separate electrode
Datalogger 7.224 measuring values
Housing Aluminium, IP 67 (optional IP 68)
Remote version Max. 30 m
Ambient temperature -20 °C up to +60 °C
Approvals OIML R49-1, MID MI-001

Accessories

AquaCUE® Flow measurement manager

  • Fast leak detection
  • No special infrastructure required
  • Data retrieval available anytime

Verification Device

  • Complete verification on site of MAG meter plants without process interruption
  • Cost and time saving: Demounting, transport, calibration and mounting are no longer necessary
  • Quick and easy check, no additional equipment necessary on site (like printer, PC, mA meter, etc.)
  • Evaluation via PC software (provided with the delivery package)
  • Print-out of verification certificates
