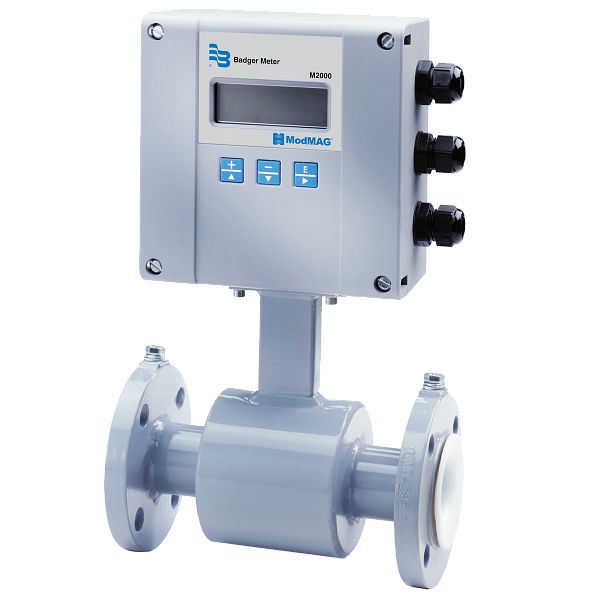

Combining a general-purpose detector with an amplifier, the ModMAG® M2000 Electromagnetic flow meter features an advanced, user-friendly design that is built for field verification testing with the use of a simple, handheld device.
The Badger Meter ModMAG® M2000 is the result of years of research and field use of electromagnetic flow meter technology. Based on Faraday’s law of induction, these meters can measure water, wastewater, water-based fluids and other liquids that meet minimum electrical conductivity. Designed, developed and manufactured under strict quality standards, this meter features sophisticated, processor-based signal conversion with accuracies of ±0.20% of rate ±1 mm/s. The wide selection of liner and electrode materials helps provide maximum compatibility and minimum maintenance over a long operating period.
The meter is best suited for bidirectional flow measurement of fluids with a conductivity > 5 µS/cm (> 20 µS/cm for demineralized water). The meter has high accuracy, is easy to use and can be chosen for a wide variety of applications. The backlit, four-line display shows all actual flow measuring data, daily and complete information, including alarm messages. The standard transmitter has 4 programmable digital outputs, one digital input, power output and different interfaces. Integrated system self checkup makes putting into operation and service easier. For service purpose, the meter configuration can be kept or transferred to another meter without a new parametering via the optional back-up parameter function.
| Feature | Specification |
|---|---|
| Available Sizes | 0.25–78 in. (6–2000 mm) |
| Accuracy | ±0.2% of reading ±1 mm/s |
| Flow Range | 0.03–12 m/s |
| Magnetic Field | Pulsed DC magnetic field for zero point stability |
| Signal Converter | Integral and remote signal converter available |
| Power Supply | 100–240 V AC / 12–32 V DC |
| Liner Material | Corrosion-resistant liners for long service life |
| Straight Run Requirement | Zero Straight Run (0 × DN), OIML/MID compliant |
| Programming | User-friendly programming procedure |
| Empty Pipe Detection | Supported |
| Totalization | Power loss totalization |
| Digital Signal Processor | 32-bit DSP |
| Memory | Non-volatile programming memory |
| Display | LCD display |
| Housing | Rotating cover, IP67 rated |
| Calibration | Calibrated in state-of-the-art facilities |
| Communication Protocols | Modbus® RTU, Modbus TCP/IP, HART, M-Bus, EtherNet/IP, BACnet/IP, BACnet MS/TP (BTL certification), Profibus DP |
| Data Logger | Integrated data logger |
| Verification | Verification device included |
| Certifications | NSF/ANSI/CAN 61 & 372 listed; CSA / AWWA C715 certified |
| Connectivity | BEACON® / AquaCUE® connectivity |

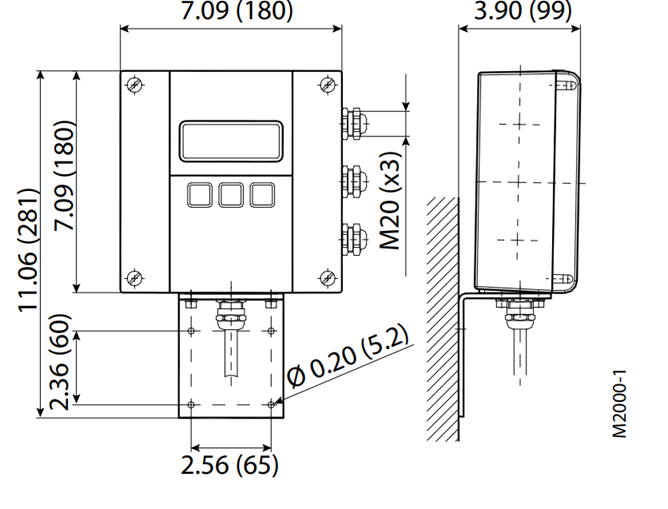

The M2000 transmitter can be integrally mounted to the sensor or can be remote-mounted, if necessary and has many advantages over other conventional technologies. The meter targets a variety of applications and is well suited for the diverse water and wastewater treatment industry. The M2000 meter can accurately measure fluid flow—whether the fluid is water or a highly corrosive liquid, very viscous, contains a moderate amount of solids, or requires special handling. Today, electromagnetic meters are successfully used in industries including building automation, oil and gas, food and beverage, pharmaceutical, water and wastewater, and chemical.
