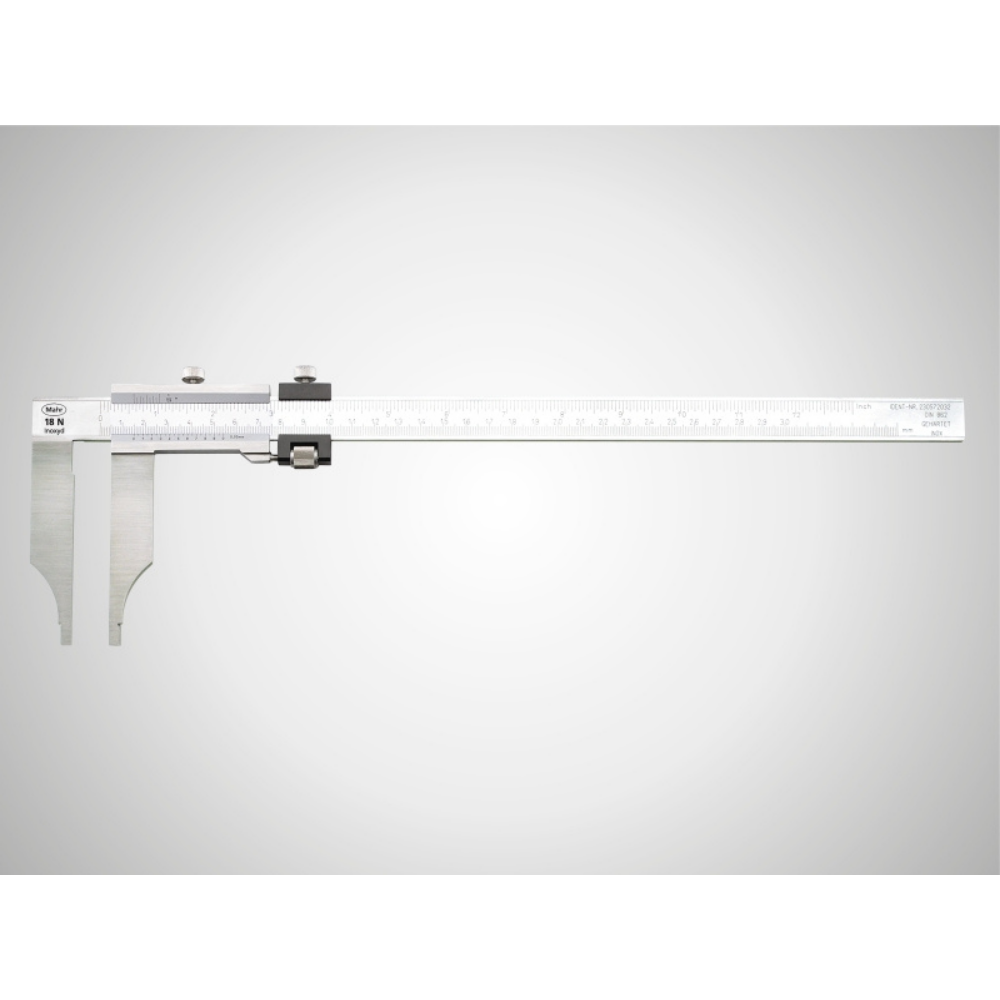

MAHR MarCal 18 N Workshop calipers, VernierWith fine adjustment

MAHR MarCal 18 N Workshop calipers, VernierWith fine adjustment
MAHR MarCal 18 N Workshop calipers, VernierWith fine adjustment

MAHR MarCal 18 N Workshop calipers, VernierWith fine adjustment

  • With fine adjustment

  • Vernier and scale have a satin chrome finish for glare free reading

  • Locking screw above

  • Rounded measuring blades for inside measurements

  • Measuring surfaces made of steel

  • Slide and beam made of hardened stainless steel

  • Raised guideway for the protection of the scale

  • up to 1000 mm delivered with a case, over 1000 mm individually packed

Uzdodiet jautājumu
Apraksts

MarCal 18 N Workshop calipers, VernierWith fine adjustment



Technical data

Order no.Measuring range mmMeasuring range inchReadings mmVernier value inchError limit (mm)Error limit inches
4112220

0 - 300

0.02 mm

0.05 mm

4112221

0 - 500

0.02 mm

0.06 mm

4112222

0 - 800

0.02 mm

0.08 mm

4112223

0 - 1000

0.02 mm

0.08 mm

4112230

0 - 300

0 - 12"

0.02 mm

.001"

0.05 mm

.002"
4112231

0 - 500

0 - 20"

0.02 mm

.001"

0.06 mm

.0025"
4112232

0 - 800

0 - 32"

0.02 mm

.001"

0.08 mm

.003"
4112233

0 - 1000

0 - 40"

0.02 mm

.001"

0.08 mm

.003"
4112234

0 - 1500

0 - 60"

0.02 mm

.001"

0.1 mm

.004"
4112235

0 - 2000

0 - 80"

0.02 mm

.001"

0.12 mm

.005"
